380v Wall-Metle ea Maraba e Metle ea Harmonic

Ho fana ka khanya ea Wall ea 380V, e qapiloeng le e entsoeng fekthering ea rona ea chisana e nang le theknoloji e tsoetseng pele. Phekolo e phahameng, ho ba bonolo ho e kenya, ebile e ts'epahetse bakeng sa lits'ebetso tse fapaneng. Ikopanye le rona hona joale bakeng sa lintlha tse ling le ho fumana thekiso e ntle ka ho fetisisa!

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Lerako le 380v leandelic Filter (Ahf) e fana ka tharollo ea ho foka ha ho na le thepa e meraro (3p3w) ea motlakase e meraro ea 380V. Tsamaisa taolo ea DPG ea DPG e tsoetseng pele ea DPL ea DPS + le mofuta ona oa mofuta o meraro, yuniti ena ea sebaka se bolokang matšeliso a teng. Lintlha tsa bohlokoa li kenyelletsa mefuta e mengata ea khang ea kotsi (2nd Harmonic), sekhahla se phahameng sa ho thella (ho fihla ho 95%), le moralo oa modumo bakeng sa khokahano le tlhokomelo e bonolo. E fumaneha ka litekanyetso tse fapaneng tsa hajoale (25A ho 150a), Lerako la 380v le nkiloeng ea ahf e tiisa boleng ba matla le bo phethahetseng ba ho batla indasteri.

Tlhaloso ea mohlala:

Gy	Ahf	0.4	50a	/	4l	W
Khoutu ea khoebo	Filthara ea mafolofolo Harmonic	Boemo ba voltage 0.4: 380v ± 20%	Leka-lekaneng (kvar) 25/50/75 / 100 / 150a		3L: terata ea metsamao e meraro e meraro 4l: Wire-terata e meraro ea boraro	W: Wall-Molodi

Likaroloana:

● Sebelisa DPR + Lisebelisoa tsohle Digital taolo, theknoloji ea topology, e tsoetseng pele ea Algorithm le PWM e hloka puseletso e nepahetseng ea ho laola.
● Mokhahlelo oa motsoako, o etsang lintho tse tsamaisang motsoako oa mekhabiso e mengata, ho nka sebaka se fokolang mme ho bonolo ho li hlokomela.
● Moralo o hlophisitsoeng oa li-ducts tse ikemetseng le matloana a ikemetseng li tlisa ts'ebetso e tsitsitseng ea lisebelisoa.
● Li ka fifala likamore tse fapaneng tse fapaneng ka bongata, ho tloha linthong tse 2 ho isa ho tse 50, u rarolle bothata ba ho hloka maemo ka tatellano ea mekhahlelo e meraro ka nako e le 'ngoe.
● Sekhahla sa litšila se phahameng haholo. Haeba ho na le bokhoni bo lumella, sekhahla sa hona joale se setle se setle se ka phahama joalo ka 95%. Beha 100% ea ho fokotsa tlhahiso ea hajoale ho netefatsa ts'ebetso ea nako e telele ea thepa.

Likopo:

Li-colonte tsa mataoana a 380v li bohlokoa bakeng sa ho boloka tšobotsi ea matla a sebetsang lits'ebetsong tsa indasteri:

● Indasteri ea indasteri:Ho Sireletsa Lisebelisoa tsa Khalemelo le ho netefatsa ts'ebetso e tšepahalang ea ho khanna ka mokhoa o fapaneng
● Limela tsa tlhahiso:Ho ntlafatsa boleng ba matla le ho fokotsa litšenyehelo ka ho fokotsa ho khopana kotsi.
● Litsi tsa data:Ho fana ka matla a hloekileng bakeng sa ho le boima le ho thibela tahlehelo ea data le ho thibela tahlehelo ea data ka lebaka la ho feto-fetoha ha matla.
● Indasteri ea oli le khase:Ho netefatsa ts'ebetso e tšepahalang ea lipompo, compress le lisebelisoa tse ling tsa bohlokoa libakeng tse matla.
● Sistimi ea matla e nchafalitsoeng:Ho kopanya mehloli e ncha ea matla ho gridi ha e ntse e boloka boleng ba matla le botsitso.

Li-colonte tsa mataoana a 380v li na le tharollo e tšepahalang le e sebetsang bakeng sa ho matlafatsa likopo tsa matla tsa matla a 380V.

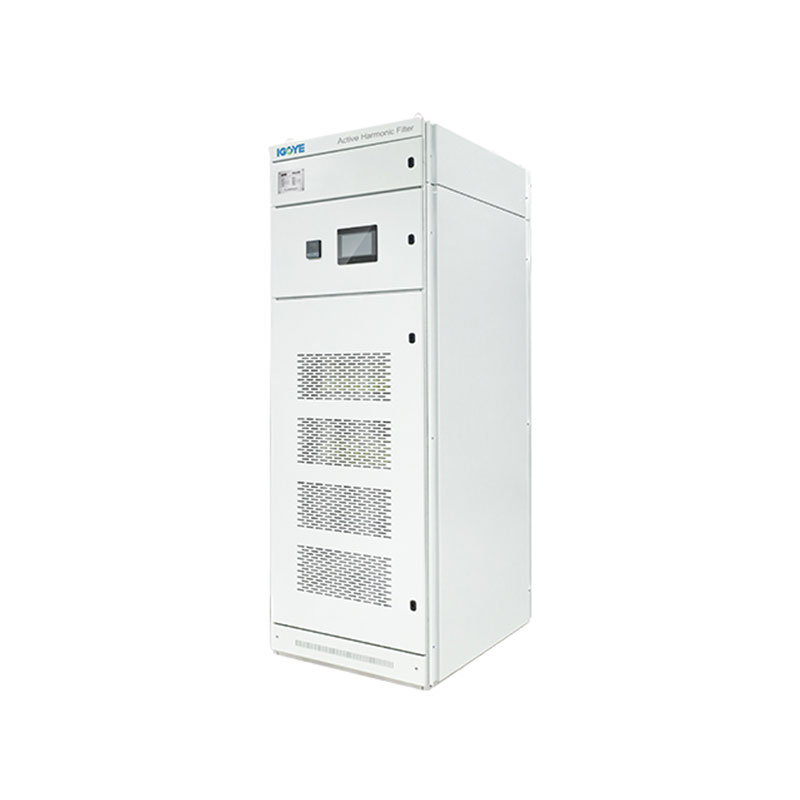

380V Wall-mounted Active Harmonic Filter

Litekanyetso tsa tekheniki:

	Letoto la 220v	380v letoto la 380v	500v New		690v Series
Bophahamo	<2000m, kaholimo ho 2000m, detete ho latela GB / t3859.2
Mocheso o fetisisang	-20 ~ + 50 ℃
Mongobo o lekanang	≤90%, ha ho na tharollo ka holimo ha mocheso o tlase oa khoeli le khoeli o 25 ℃
Boemo ba tšilafalo	Boemo bona iii ka tlase
Ho sebetsa Voltage	Ac220v ± 20%	Ac380v ± 20%	Ac500v ± 20%		Ac690v ± 20%
Khafetsa	50hz ± 5%
Puseletso ea hajoale	25a	25/50/75/100 / 150a	100a		100a
Sebopeho sa Grid	L / n	3p3w / 3p4w	3p3w / 3p4w		3p3w / 3p4w
Palo ea likarolo tse amanang le ho tšoana	Ulue
Ka kakaretso mochini oa mochini	≥97%
Sebopeho sa Grid	32Khz	16Khz	12.8khz		12.8khz
Lipalo tsa Matšeliso	2 ~ Li-50time tsa 50tice, sekhahla se le seng sa matšeliso se ka fetoha
Khetho ea Ts'ebetso	Matla a sebetsang	Matla a sebetsang, matla a sebetsang + asymmetry
Sekhahla sa matšeliso a matla a motlakase	≥95%	> 92%
Mokhooa bo sa jeleng patering		Moqola o sa nketsane oa ho fala patel patering ke makhetlo a 3 a bolaoli ba ho tsamaisa decality
Nako e felletseng ea karabelo	<10ms	<40ms		<40ms	<40ms
Lerata	≤60db	≤60db		≤65db	≤65db
Mokhoa oa taolo	2-mokhoa oa Rs485 (li-gprs / WiFi)
Ts'ireletso	Ho imeloa, Software / Hardware ka ho fetelletsa litaba, ho se sebetse hantle, ho hloleha ha motlakase, ho hloleha ho hoholo, ho hloleha ho holofala, jjha	Ho imeloa, Software / Hardware ka ho fetelletsa litaba, ho hloleha ho senyeha hoa seriti, ho hloleha ho kheloha ho sa tloaelehang ha ho senyeha hoa pele, e le tšireletso ea potoloho, jj.
Mokhoa oa ho kenya	Rack / Wall-Molodi		Rack
Moleng o kenang	Bula ka morao (mofuta oa Rack), o kenang ka holimo (Wall-Molosi oa Wall-Molosi)		Mohala o kenang
Boemo ba ts'ireletso	Ip20

Mohlala & Tlhaloso:

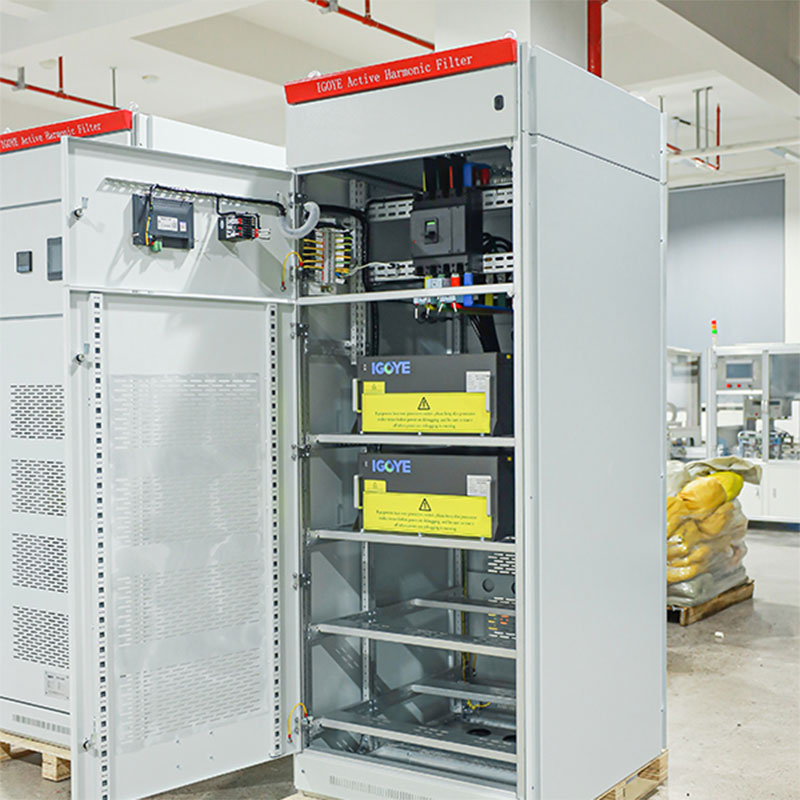

380V Wall-mounted Active Harmonic Filter

Mehlala
Nomoro ea mohlala	E lekantsoe hona joale (a)	Voltage ea sistimi (V)	Boholo (D * w * h)	Mokhoa oa ho futhumatsa
GYP-0.2222-25a / 2l-R / W	25	220	220 * 330 * 160mm	O ile a khomarela moea
GYP -.4-25a / 4l-R / W	25	380 ± 20%	460 * 490 * 89mm
Gyp-0.4-50a / 4l-R / W	50	380 ± 20%	460 * 490 * 89mm
Gyp-0,4-75a / 4l-R / W	75	380 ± 20%	500 * 510 * 190MM
Gyp-0,4-100a / 4l-R / w	100	380 ± 20%	500 * 550 * 240mm
Gyp-0,4-150a / 4l-R / W	150	380 ± 20%	500 * 550 * 240mm
GYP-0.5-100A / 4L-R / W	100	500 ± 20%	495 * 675 * 275mm
GYP-0.69-100A / 4L-R / W	100	690 ± 20%	495 * 675 * 275mm
