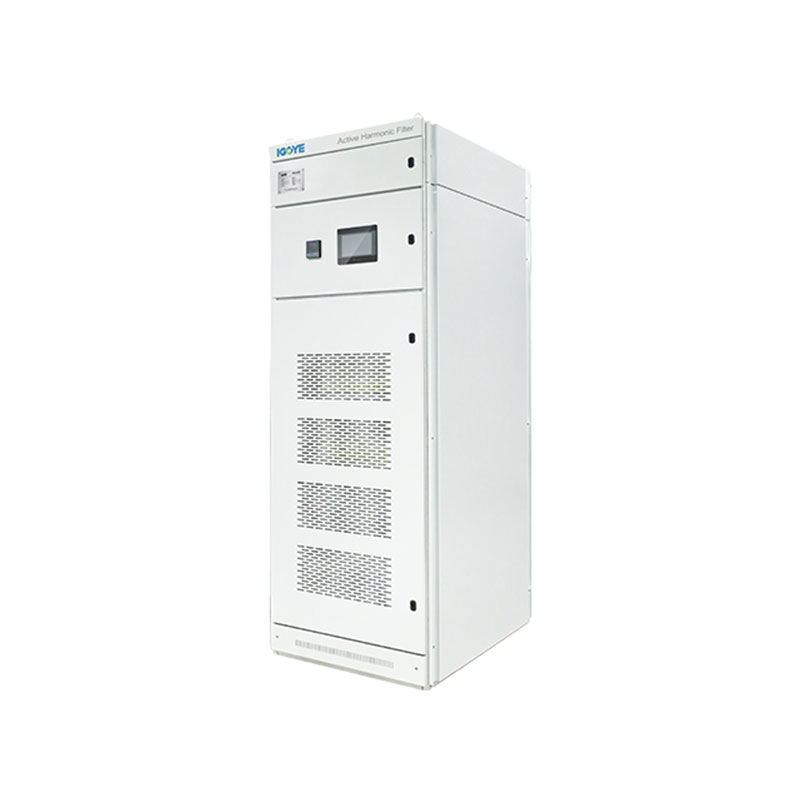

Mofuta oa cabinet o le mong oa khabinete e sebetsang

Ho na le menoana e nang le sebapali sa khanye e sebetsang ea moqolotsi oa " Likarolo tsa Digital, lebotho la khabinete le eketsa manyolo hohle taelo ea 50. E loketseng meaho ea khoebo, lits'ebeletso tsa bongaka, lits'ebeletso tsa bongaka tsa ho laola le likopano tsa bolulo. E loketseng meaho ea khoebo, lits'ebeletso tsa bongaka le likopo tsa bolulo.

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Mofuta oa khabinete e le 'ngoe ea khanyetso ea "cabinet" Ho Sebelisa Alpharithms ea DSP + Cpdoriths Moralo oa eona oa mophetulo o lumella katoloso e potlakileng ea bokhoni ka khokahano e tšoanang. APF e na le setumo sa cabininet ka mokhoa o hlakileng le ho phoqa ka mokhoa o qobelloang oa moea oa moea o tšepahalang libakeng tse batlang. Ka mefuta e mengata le bokhoni ba mofuta o le mong, mofuta o le mong oa khabinete e sebetsang e fana ka phetolelo ea boleng bo sebetsang bakeng sa lits'ebetso tse fapaneng.

Tlhaloso ea mohlala:

Gy	Apf	0.4	50a	/	4l	C
Khoutu ea khoebo	Filthara ea mafolofolo Harmonic	Boemo ba voltage 0.22: 220v	Leka-lekaneng (kvar) 25a		2l: e le 'ngoe	C: Kabinet

Likaroloana:

● Sebelisa DPR + Lisebelisoa tsohle Digital taolo, theknoloji ea topology, e tsoetseng pele ea Algorithm le PWM e hloka puseletso e nepahetseng ea ho laola.
● Mokhahlelo oa motsoako, o etsang lintho tse tsamaisang motsoako oa mekhabiso e mengata, ho nka sebaka se fokolang mme ho bonolo ho li hlokomela.
● Moralo o hlophisitsoeng oa li-ducts tse ikemetseng le matloana a ikemetseng li tlisa ts'ebetso e tsitsitseng ea lisebelisoa.
● Li ka fifala likamore tse fapaneng tse fapaneng ka bongata, ho tloha linthong tse 2 ho isa ho tse 50, u rarolle bothata ba ho hloka maemo ka tatellano ea mekhahlelo e meraro ka nako e le 'ngoe.
● Sekhahla sa litšila se phahameng haholo. Haeba ho na le bokhoni bo lumella, sekhahla sa hona joale se setle se setle se ka phahama joalo ka 95%. Beha 100% ea ho fokotsa tlhahiso ea hajoale ho netefatsa ts'ebetso ea nako e telele ea thepa.

Likopo:

Mofuta oa cabinet o le mong oa khabinete e sebetsang o sebetsana le mathata a khokhopone ho potoloha likarolo tse fapaneng:

● Meaho ea khoebo:Ho fokotsa maratsoana ho tsoa meroalo ea mekhahlelo e le 'ngoe e kang mabone, HVIC System, le lisebelisoa tsa ofisi.
● Lisebelisoa tsa indasteri:Ho ntlafatsa boleng ba motlakase bakeng sa lisebelisoa le lits'ebetso tsa motsamao le lits'ebetso tsa limpho tsa indasteri.
● Lisebelisoa tsa bongaka:Ho sireletsa lisebelisoa tsa bongaka tse tebileng ho tsoa ho ho khopisoa ke khang ka mekhoa ea motlakase o le mong.
● Likopo tsa bolulo (matla a phahameng):Ho sebetsana le litaba tsa bolumeli ka matlong a nang le meroalo e le 'ngoe e se nang mola.

Lisebelisoa tsa khabinete e le 'ngoe tsa khanyetso ea "

Single-phase Cabinet-type Active Harmonic Filter

Litekanyetso tsa tekheniki:

	Letoto la 220v	380v letoto la 380v	500v New		690v Series
Bophahamo	<2000m, kaholimo ho 2000m, detete ho latela GB / t3859.2
Mocheso o fetisisang	-20 ~ + 50 ℃
Mongobo o lekanang	≤90%, ha ho na tharollo ka holimo ha mocheso o tlase oa khoeli le khoeli o 25 ℃
Boemo ba tšilafalo	Boemo bona iii ka tlase
Ho sebetsa Voltage	Ac220v ± 20%	Ac380v ± 20%	Ac500v ± 20%		Ac690v ± 20%
Khafetsa	50hz ± 5%
Puseletso ea hajoale	25a	25/50/75/100 / 150a	100a		100a
Sebopeho sa Grid	L / n	3p3w / 3p4w	3p3w / 3p4w		3p3w / 3p4w
Palo ea likarolo e hokahantsoeng ka mokhoa o tšoanang	Ulue
Ka kakaretso mochini oa mochini	≥97%
Sebopeho sa Grid	32Khz	16Khz	12.8khz		12.8khz
Lipalo tsa Matšeliso	2 ~ Li-50time tsa 50tice, sekhahla se le seng sa matšeliso se ka fetoha
Khetho ea Ts'ebetso	Matla a sebetsang	Matla a sebetsang, matla a sebetsang + asymmetry
Matla a sebetsang Sekhahla sa matšeliso	≥95%	> 92%
Ho fafatsa ha ho na bokhoni		Moqola o sa nketsane oa ho fala patel patering ke makhetlo a 3 a bolaoli ba ho tsamaisa decality
Nako e felletseng ea karabelo	<10ms	<40ms		<40ms	<40ms
Lerata	≤60db	≤60db		≤65db	≤65db
Mokhoa oa taolo	2-mokhoa oa Rs485 (li-gprs / WiFi)
Ts'ireletso	Ho imeloa, Software / Hardware ka ho fetelletsa litaba, ho se sebetse hantle, ho hloleha ha motlakase, ho hloleha ho hoholo, ho hloleha ho holofala, jjha	Ho imeloa, Software / Hardware ka ho fetelletsa litaba, ho hloleha ho senyeha hoa seriti, ho hloleha ho kheloha ho sa tloaelehang ha ho senyeha hoa pele, e le tšireletso ea potoloho, jj.
Mokhoa oa ho kenya	Rack / Wall-Molodi		Rack
Moleng o kenang	Bula ka morao (mofuta oa Rack), o kenang ka holimo (Wall-Molosi oa Wall-Molosi)		Mohala o kenang
Boemo ba ts'ireletso	Ip20

Mohlala & Tlhaloso:

Single-phase Cabinet-type Active Harmonic Filter

Mohlala oa Sesebelisoa sa Kabinet
Nomoro ea mohlala	Makhotla a busello (Kvar)	Voltage ea sistimi (V)	Boholo (D * w * h)	Mokhoa oa ho futhumatsa
Gyp-0,4-100a / 4l-c	100	380 ± 20%	800 * 1000 * 2200mm	O ile a khomarela moea
Gyp-0,4-150a / 4l-c	150	380 ± 20%	800 * 1000 * 2200mm
GYP -.4-200A / 4L-C	200	380 ± 20%	800 * 1000 * 2200mm
Gyp-0,4-250a / 4l-c	250	380 ± 20%	800 * 1000 * 2200mm
Gyp-0.4 y00a / 4l-c	300	380 ± 20%	800 * 1000 * 2200mm
GYP -.4-400A / 4L-C	400	380 ± 20%	800 * 1000 * 2200mm
Gyp-0.5-300a / 4l-c	300	500 ± 20%	800 * 1000 * 2200mm
GYP-0.69-300A / 4L-C	300	690 ± 20%	800 * 1000 * 2200mm
