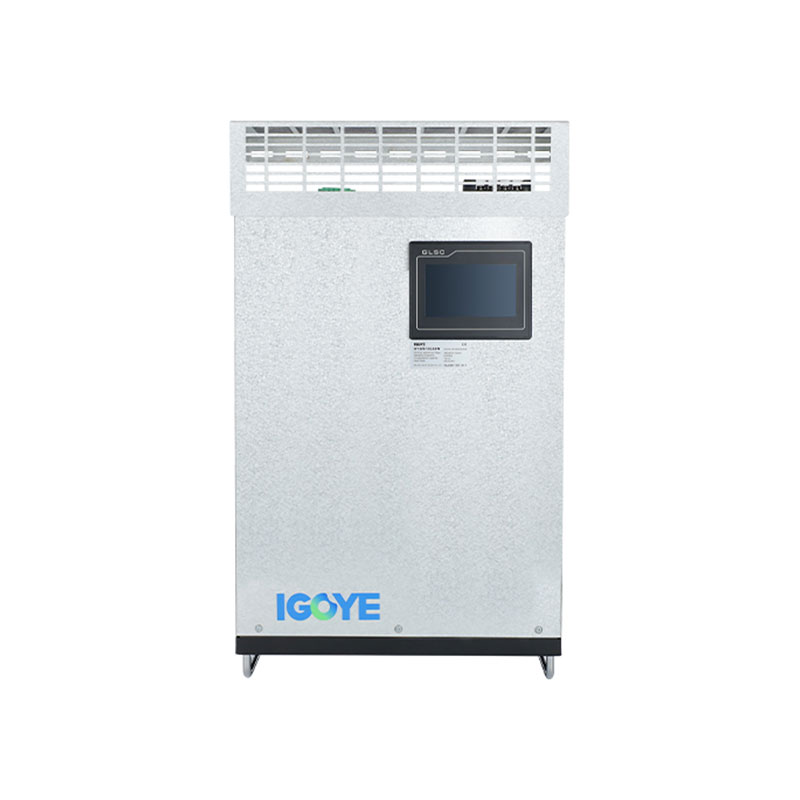

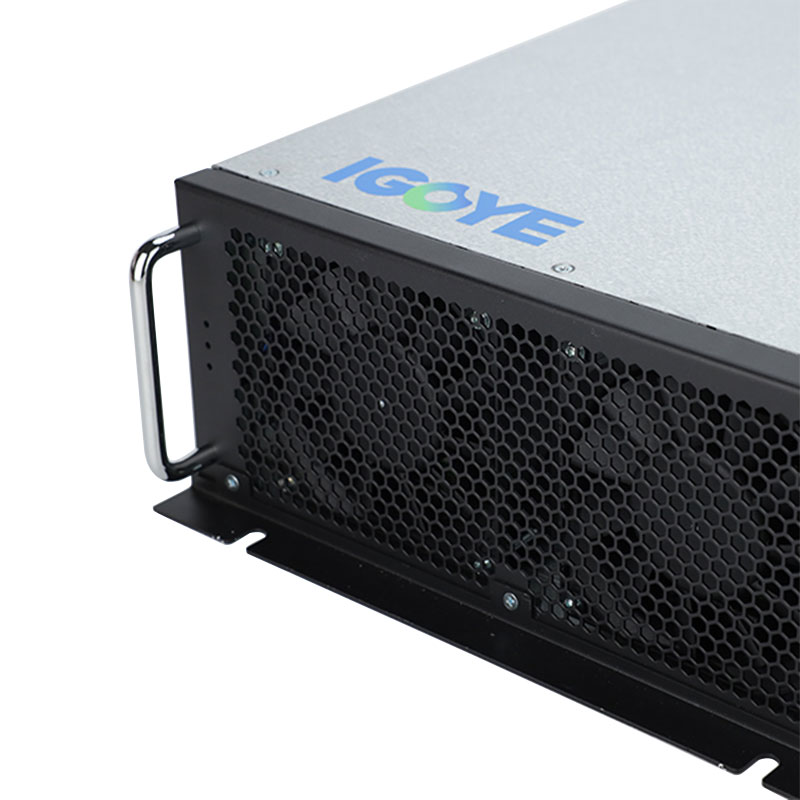

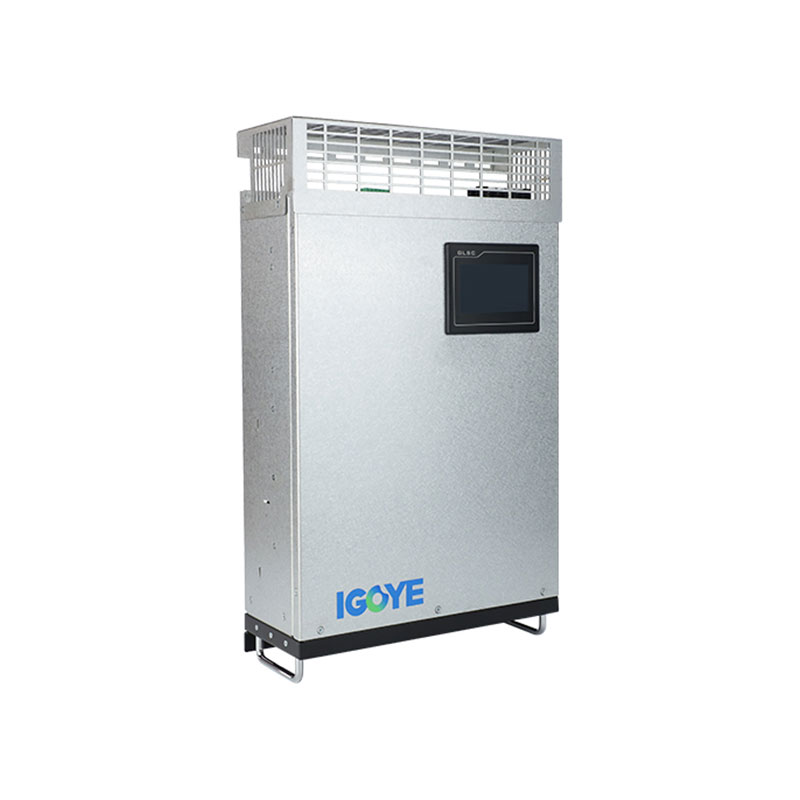

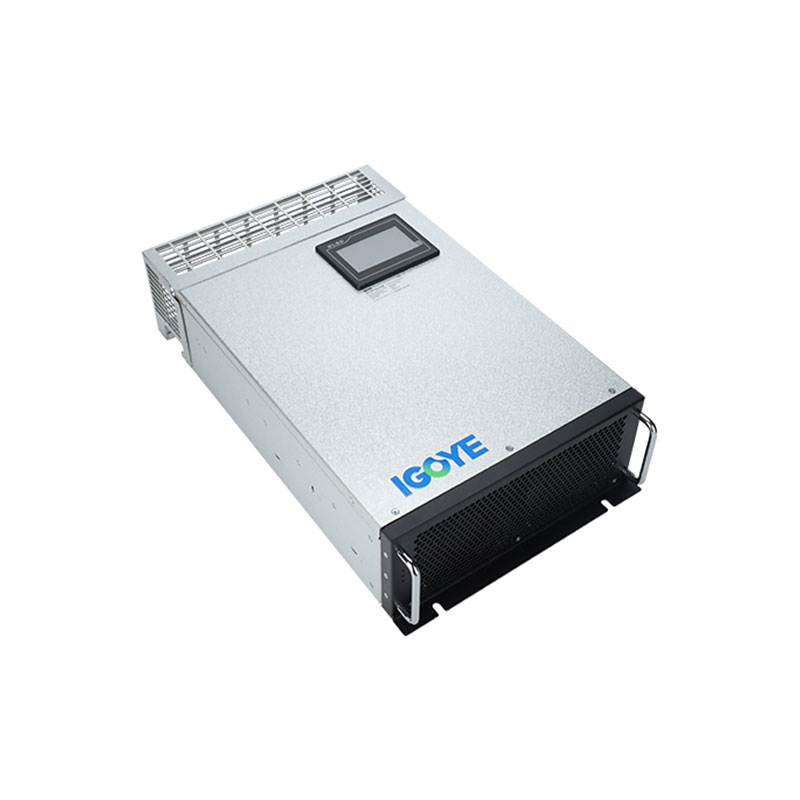

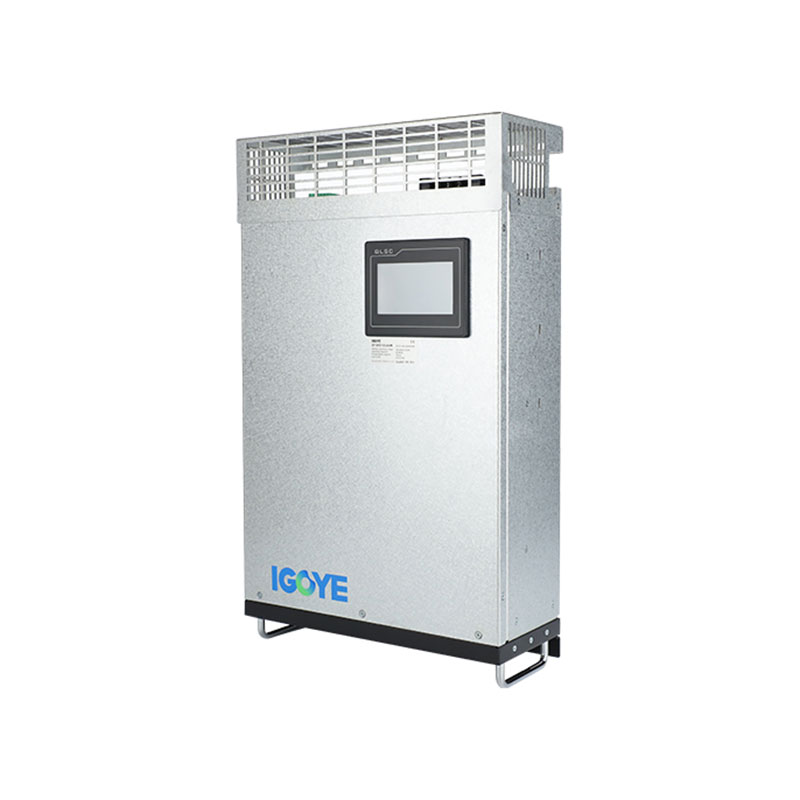

500v Rack Mount Actor Acentic Filter

The 500V Rack Mount Active Harmonic Filter (AHF) offers a robust solution for harmonic mitigation in 500V (±20%) three-phase four-wire (3P4W) and three-phase three-wire (3P3W) power systems. This rack-mounted unit employs advanced DSP+CPLD digital control and a three-level topology for precise harmonic current compensation up to the 50th harmonic. Its modular design facilitates scalability through parallel connection, enabling higher capacity while simplifying maintenance. The 100A rated current model effectively addresses harmonic distortion in high-voltage applications. Forced air cooling ensures reliable, long-term operation. The 500V Rack Mount Active Harmonic Filter provides exceptional power quality management for demanding industrial environments.

Model description:

Features:

● Use DSP+CPLD all digital control core, three-level topology technology, advanced harmonic detection algorithm and PWM control strategy to achieve accurate compensation of harmonic current.

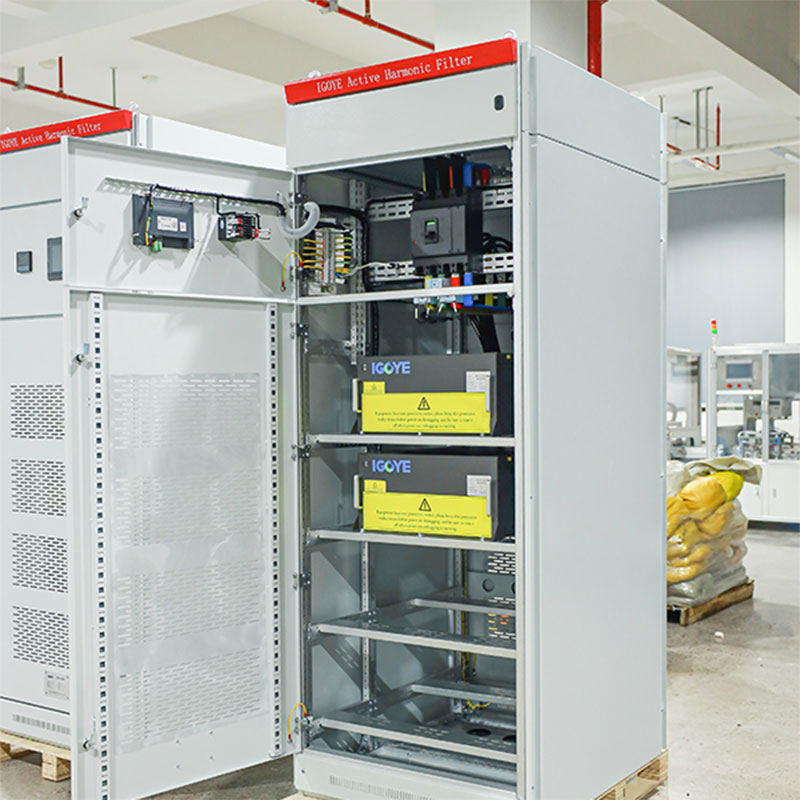

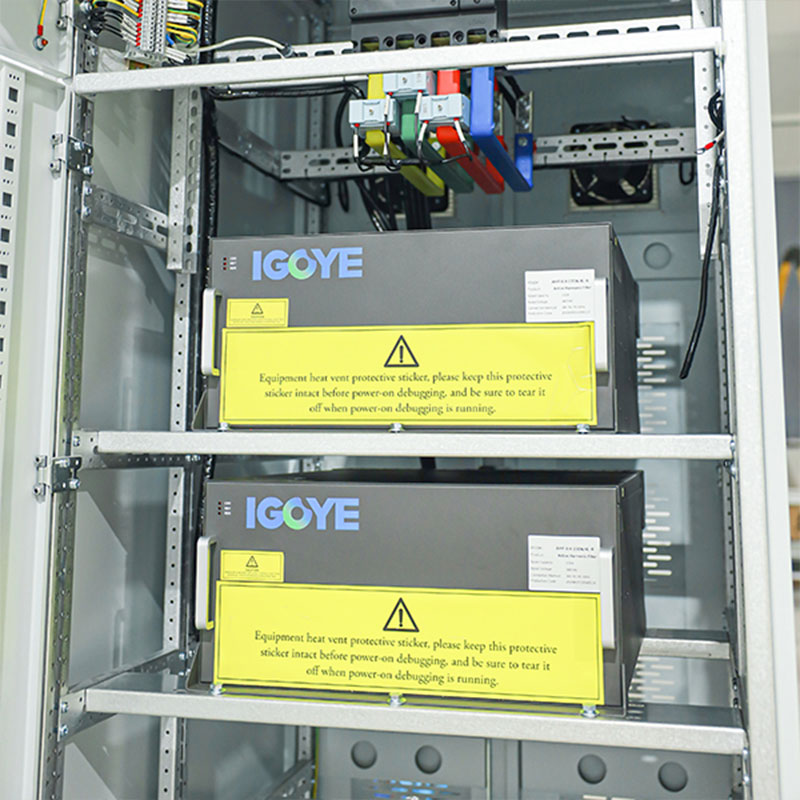

● Adopt modular design, which facilitates parallel connection of multiple modules, takes up little space and is easy to maintain.
● The structural design of independent air ducts and independent warehouses ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50 harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic current filtering rate can be as high as 95%. Set 100% current limiting output to ensure long-term stable operation of the equipment.

Applications:

500V Rack Mount Active Harmonic Filters are essential for maintaining power quality and equipment reliability in various high-voltage applications:

● Heavy Industry: Mitigating harmonics generated by large motors, VFDs, and other non-linear loads in demanding industrial settings.
● Renewable Energy Systems: Stabilising power output from solar and wind farms connected to high-voltage grids.
● Oil and Gas: Ensuring reliable operation of critical equipment in high-voltage power distribution systems.
● Mining Operations: Protecting sensitive electronic equipment and maintaining power quality in harsh environments.

500V Rack Mount Active Harmonic Filters provide advanced harmonic mitigation for high-voltage power systems, ensuring stability and reliability.

Technical Parameters:

Model& Specification:
