Metso e mene ea melumo e meraro ea terata e 'meli ea koloi e sebetsang hantle

Joaloka Moetsi ea etellang pele, e fana ka kou ea terata e 'meli ea terata e sebetsang Harmonic, e etselitsoeng boemo ba boleng bo phahameng le bokhabane. Forth ea rona Chaena e fana ka litharollo tse theko e tlaase, tse matla tse neng li ts'epa balekane lefatšeng ka bophara. Fumana hore na ke hobane'ng ha lihlahisoa tsa rona li ikhethile haholo - rea ikopanya le rona kajeno bakeng sa lintlha tse ling!

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Mofuta o mong oa terata oa melumo ea meroho o mongata oa koloi e sebetsang (ahf) e fana ka eona ho se lumellane ho felletseng ka litsamaiso tse 'ne tsa terata tse' ne. Ho sebelisa a DSP + CPD Digital Taolo ea Taolo ea Taolo ea Khoebo ea DPG Harmonic ho ea ho odara e 50, ha e ntse e sebetsana le karolo ea boraro ho se be teng. Moralo oa eona oa modular o lumella tharollo ea ScELALAT LE Ngoliso e Nolofalitsoeng tlhokomelo. E fumaneha ka litekanyetso tse fapaneng tsa hajoale (25a ho 150a) le voltage Methati (220v ho 690V), AHF e fana ka sehokelo se feto-fetohang. Qobelloa Ho futhumatsa moea ho etsa hore ts'ebetso e tšepahalang le tlasa maemo a ho batla. Sena Mokhahlelo o mene ea Wire-Wire Rough Avelic Harmonic Harmonic o tiisa matla Boleng ba boleng le sistimi.

Tlhaloso ea mohlala:

Gy	Ahf	0.4	50a	/	4l	R
Khoutu ea khoebo	Filthara ea mafolofolo Harmonic	Boemo ba voltage 0.22: 220v 0.4: 380v ± 20% 0.5: 500v ± 20% 0.69: 690v ± 20%	Leka-lekaneng (kvar) 25/50/75 / 100 / 150a		4l: Wire-terata e meraro ea boraro	R: Rack Mount

Likaroloana:

● Tšebeliso ea DP + e sebelisa DPR + Lisebelisoa tsohle tsa Digital taolo, leano le tsoetseng pele la ho utloisisa algorithm le ho lahla maano a taolo ea algorithm le pwm ho fihlella puseletso e nepahetseng ea harmonic ea hajoale.
● Moqapi oa motsoako, o fanang ka mokhoa oa ho tsamaisana le baahi ba bangata Li-module, li nka sebaka se fokolang mme ho bonolo ho li hlokomela.
● Moralo o hlophisitsoeng oa li-ducts tse ikemetseng le li-warehouse tse ikemetseng netefatsa ts'ebetso e tsitsitseng ea lisebelisoa.
● E ka khona ho taka matona a lintho tse ling tse fapaneng ka bongata, ho tloha ho 2 ho isa ho 50 LITLHAKISO TSA BOPHELO, 'me u rarolle bothata ba ho hloka maemo a mohato a mararo ka nako e le' ngoe.
● Sekhahla sa litšila se phahameng haholo. Haeba bokhoni bo lumella, Harmonic Litefiso tsa hona joale tsa ho sefa li ka phahama joalo ka 95%. Beha 100% ea ho fokotsa tlhahiso ho netefatsa ts'ebetso ea nako e telele ea lisebelisoa.

Likopo:

Mekha e mene ea mero e mene ea terata ea terata ea terata ea terata ea terata ea terata ea terata ea terata Ho boloka matla a hloekileng likolong tse fapaneng:

● Litsi tsa data: Ho sireletsa lisebelisoa tse hlokometsoeng 'me u li netefatsang ts'ebetso ka ho tlosa ho khopana harmonic.
● Lipetlele: Ho fana ka matla a tšepahalang bakeng sa lisebelisoa tse tšepahalang tsa lisebelisoa tsa bongaka, Ho khothatsa ka mamello tsa pelo le polokeho.
● Libaka tsa indasteri: Ho ntlafatsa katleho le li-lefu la li-lefu la mochine oa mekhahlelo e meraro ka ho fokotsa ho kena-kenana le tumellano.
● Meaho ea khoebo: ho boloka boleng ba matla meahong e rarahaneng Sistimi ea Motlakase, ho fokotsa nako ea nako ea nako le tšebeliso ea lisebelisoa.

Mekha e mene ea mero e mene ea terata ea teropo e anngoeng ea koloi e sebetsang e fana ka khanya le Litharollo tsa khahlano tsa khatiso ea Harmonic Likopo.

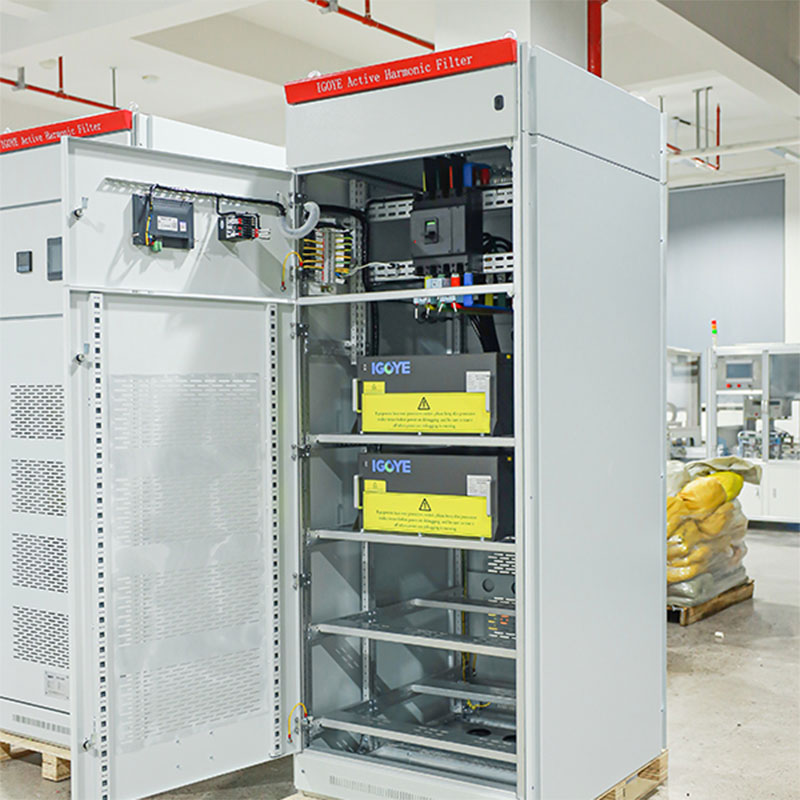

Three-phase Four-wire Rack Mount Active Harmonic Filter

Litekanyetso tsa tekheniki:

	Letoto la 220v	380v letoto la 380v	500v New		690v Series
Bophahamo	<2000m, kaholimo ho 2000m, detete ho latela GB / t3859.2
Mocheso o fetisisang	-20 ~ + 50 ℃
Mongobo o lekanang	≤90%, ha ho na likarabo tse holimo ha khoeli le khoeli mocheso o fokolang o 25 ℃
Boemo ba tšilafalo	Boemo bona iii ka tlase
Ho sebetsa Voltage	Ac220v ± 20%	Ac380v ± 20%	Ac500v ± 20%		Ac690v ± 20%
Khafetsa	50hz ± 5%
Puseletso ea hajoale	25a	25/50/75/100 / 150a	100a		100a
Sebopeho sa Grid	L / n	3p3w / 3p4w	3p3w / 3p4w		3p3w / 3p4w
Palo ea likarolo e hokahantsoeng ka mokhoa o tšoanang	Ulue
Ka kakaretso mochini oa mochini	≥97%
Sebopeho sa Grid	32Khz	16Khz	12.8khz		12.8khz
Lipalo tsa Matšeliso	2 ~ Li-50time tsa 50tice, sekhahla se le seng sa matšeliso se ka fetoha
Khetho ea Ts'ebetso	Matla a sebetsang	Matla a sebetsang, matla a sebetsang + asymmetry
Matla a sebetsang Sekhahla sa matšeliso	≥95%	> 92%
Ho fafatsa ha ho na bokhoni		Mokhooa o sa nketsane oa ho fafatsa ka makhetlo a 3 a qalang Matla a ho fafatsa
Nako e felletseng ea karabelo	<10ms	<40ms		<40ms	<40ms
Lerata	≤60db	≤60db		≤65db	≤65db
Mokhoa oa taolo	2-mokhoa oa Rs485 (li-gprs / WiFi)
Ts'ireletso	Ho imeloa, Software / Hardware ho feta tekano, ho phathahana ka griid le ho kenella ka tlase Tšireletso e sa tloaelehang, jj.	Ho imeloa, Software / Hardware ho feta tekano, ho phathahana ka griid le ho se sebetse hantle, ho se atlehe ha velolance ea seriti, ho hloleha hoa matla, overtemperature, e sa tloaelehang e sa tloaelehang khafetsa, potoloho e khuts'oane Tšireletso, jj.
Mokhoa oa ho kenya	Rack / Wall-Molodi		Rack
Moleng o kenang	Bula ka morao (mofuta oa Rack), o kenang ka holimo (Wall-Molosi oa Wall-Molosi)		Mohala o kenang
Boemo ba ts'ireletso	Ip20

Mohlala & Tlhaloso:

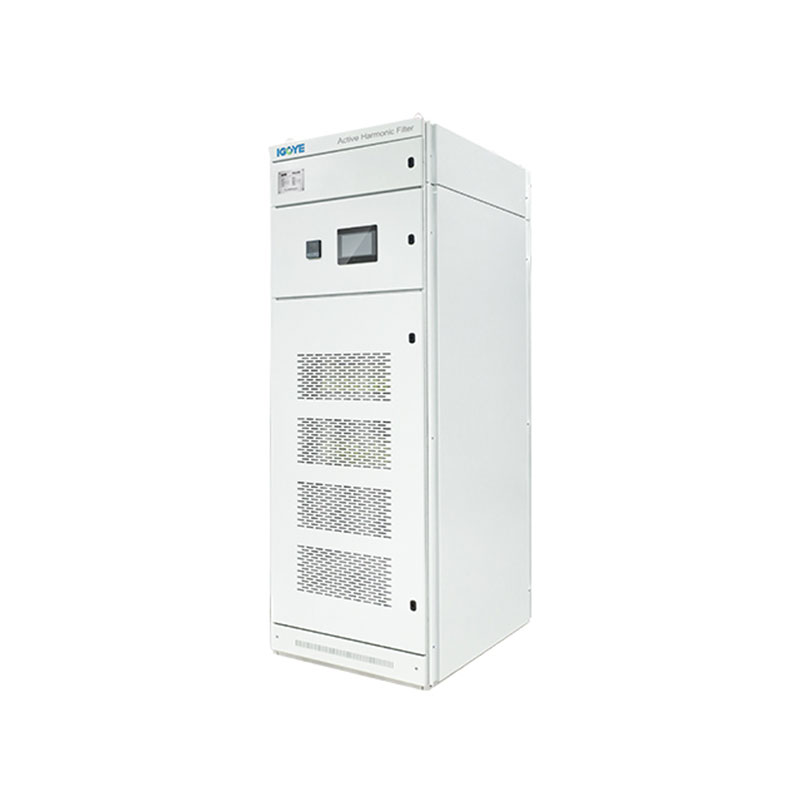

Three-phase Four-wire Rack Mount Active Harmonic Filter

Mehlala
Nomoro ea mohlala	E lekantsoe hona joale (a)	Voltage ea sistimi (V)	Boholo (D * w * h)	Mokhoa oa ho futhumatsa
GYP-0.2222-25a / 2l-R / W	25	220	220 * 330 * 160mm	O ile a khomarela moea
GYP -.4-25a / 4l-R / W	25	380 ± 20%	460 * 490 * 89mm
Gyp-0.4-50a / 4l-R / w	50	380 ± 20%	460 * 490 * 89mm
Gyp-0,4-75a / 4l-R / w	75	380 ± 20%	500 * 510 * 190MM
Gyp-0,4-100a / 4l-R / w	100	380 ± 20%	500 * 550 * 240mm
Gyp-0,4-150a / 4l-R / w	150	380 ± 20%	500 * 550 * 240mm
GYP-0.5-100A / 4L-R / W	100	500 ± 20%	495 * 675 * 275mm
GYP-0.69-100A / 4L-R / W	100	690 ± 20%	495 * 675 * 275mm
