Jeke e nang le mofuta o le mong oa cabinet "

Ho hlahisa mofuta o le mong oa khabinete e le 'ngoe - tharollo ea khalemelo ea matla a matla le matla a motlakase a sebetsang ka ts'ebetsong ea hau. SOONESE E entsoe Chaena, Svg ena e etselitsoe ho fana ka ts'ebelisano e tšepahalang le e phahameng ea matla a sebetsang lits'ebetsong tse fapaneng tsa indasteri. Haeba u batla ho ntlafatsa ts'ebetso ea matla ea matla le ho netefatsa phepelo e tsitsitseng ea matla, e kopanye qotsulo kajeno!

Romela Lipatlisiso PDF Download

Tlhaloso ea Sehlahisoa

Mofuta o mong oa khabinete e le 'ngoe (svg) oa mofuta oa "cabinet" Ho sebelisa DSP + CPD Digital Off le Li-actate tse tsoetseng pele le tsebiso e nepahetseng le puseletso e potlakileng le nako e felletseng ho feta 10ms. Moralo oa mofuta oa cabinet o etsa mohlala oa ts'ireletso ea matla le ho kenya sebaka se loketseng libaka tse fapaneng tsa indasteri. E fumaneha ka bokhoni ba ho tloha ka 5kvar ho ea 55kvar ho ea 55kvar, marena ana a svg ho litlhoko tsa kopo ea motho a sa le mong.

Tlhaloso ea mohlala:

Gy	Svg	0.22	50k	/	2l	C
Khoutu ea khoebo	Pakete ea VRAND ea lipalo	Boemo ba voltage 0.22: 220v	Lekhetho le lekantsoeng (kvar) 5/1 / 19,5 / 271 / 55kvar		2l: e le 'ngoe	C: cabint

Likaroloana:

● Sebelisa DSP + Lisebelisoa tsohle Digital taolo, theknoloji ea thuto ea bolumeli e merafe ea matla, e tsoetseng pele ho tseba matla a matla a algorithm le pwm.
● Mokhahlelo oa motsoako, o etsang lintho tse tsamaisang motsoako oa mekhabiso e mengata, o nka sebaka ebile ho bonolo ho li hlokomela.
● Moralo o hlophisitsoeng oa li-ducts tse ikemetseng le matloana a ikemetseng li tlisa ts'ebetso e tsitsitseng ea lisebelisoa.
● Etsa puseletso e matla ea matla bakeng sa matla a ho fana ka mokhoa o ikhethileng le matla a sebetsang, le ho rarolla bothata ba ho se kopane ka metsotso e meraro ka nako e le 'ngoe.
● Lebelo le matla la karabelo ho mojaro o sebakeng sa millicond le se ka fihlelang maqeba a matla le a nepahetseng bakeng sa matla a sebetsang a tšusumetso.

Likopo:

Li-Genet tse nang le li-cabinet tse nang le li-cabinet tse nang le li-cabinet tse ntle li loketse likopo tse le 'ngoe tse hlokang taolo e nepahetseng ea matla:

● Khothatso ea 'nete ea karolo e le' ngoe ea karoloHo ntlafatsa mokhoa oa motlakase ka lits'ebetso tsa 220VV, fokotsa litšenyehelo tsa motlakase le ho ntlafatsa maemo.
● Lisebelisoa tsa lisebelisoa tse le 'ngoe tse phethahetseng:Ho ntlafatsa ts'ebetso le katleho ea lisebelisoa tsa ho romellana mohato ka mokhoa o le mong ka ho batla litlhoko tsa motlakase ka mokhoa o hlakileng bakeng sa tlhoko ea motlakase e sa sebetseng.
● Boleng ba matla a bolulo:Ho ntlafatsa boleng ba motlakase maemong a bolulo ka ho fokotsa mocheso le kotsi e amanang le meroalo e itekanetseng.
● Tsamaiso ea Li-indasteri ea Liindasteri tsa Power (e le 'ngoeHo fana ka voltage e tsitsitseng le boleng bo ntlafalitsoeng ba matla a ho ntlafatsa bakeng sa lits'ebetso tsa indasteri tse sebetsang ho matla a le mong.

Baqapi ba li-cabinet ba li-cabinet ba li-cabinet ba li-cabinet ba fana ka tharollo e sebetsang le e sebetsang bakeng sa ho thibela boleng ba matla le ho ntlafatsa mokhoa oa ho sebetsa ka mokhoa o le mong.

Single-phase Cabinet-type Static Var Generator

Litekanyetso tsa tekheniki:

	Letoto la 220v	380v letoto la 380v		500v New		690v Series
Bophahamo	<2000m, kaholimo ho 2000m, detete ho latela GB / t3859.2
Ambient temperature	-20 ~ + 50 ℃
Mongobo o lekanang	≤90%, ha ho na tharollo ka holimo ha mocheso o tlase oa khoeli le khoeli o 25 ℃
Boemo ba tšilafalo	Boemo bona iii ka tlase
Ho sebetsa Voltage	Ac220v ± 20%	Ac380v ± 20%		Ac500v ± 20%		Ac690v ± 20%
Khafetsa	50hz ± 5%
E lekantsoeng e nang le matšeliso	5Kvar	15/35/50/75 / 100Kvar		90kvar		120kvar
Sebopeho sa Grid	L / n	3p3w / 3p4w
Palo ea likarolo tse amanang le ho tšoana	Ulue
Ka kakaretso mochini oa mochini	≥97%
Khafetsa khafetsa	32Khz	16Khz		12.8khz		12.8khz
Khetho ea Ts'ebetso	Matla a sebetsang	PO Were, e ileng ea khahla 'na'
Sekhahla sa matšeliso a matla a motlakase	≥99%	> 95%
Nako e felletseng ea karabelo	<10ms
Lerata	≤60db	≤60db		≤65db		≤65db
Mokhoa oa taolo	2-mokhoa oa Rs485 (li-gprs / WiFi)
Ts'ireletso	Ho imeloa, Software / Hardware ka ho fetelletsa litaba, ho se sebetse hantle, ho hloleha ha motlakase, ho hloleha ho hoholo, ho hloleha ho holofala, jjha		Ho fetella, Software / Hardware ka ho fetelletsa litaba, ho hloleha ha motlakase, ho hloleha ho senyeha, ho thunya ho senyeha hoa potoloho, joalo-joalo.
Mokhoa oa ho kenya	Rack / Wall-Molodi				Rack
Moleng o kenang	Bula ka morao (mofuta oa Rack), o kenang ka holimo (Wall-Molosi oa Wall-Molosi)				Mohala o kenang
Boemo ba ts'ireletso	Ip20

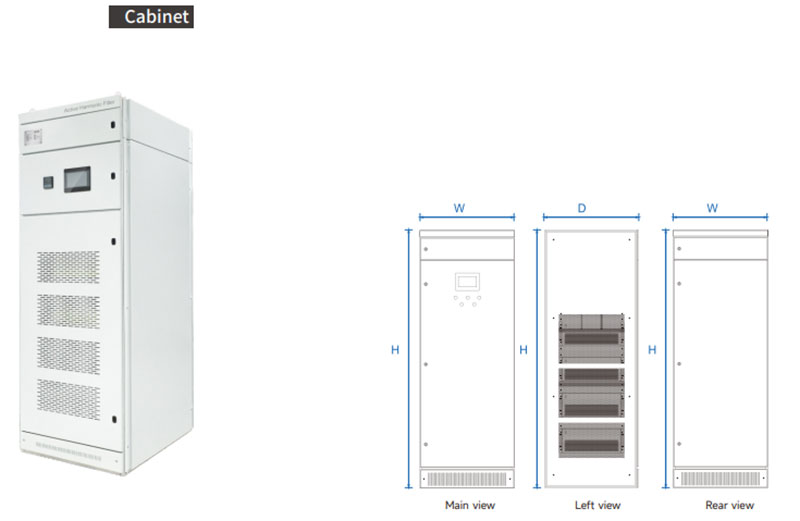

Mohlala & Tlhaloso:

Single-phase Cabinet-type Static Var Generator

Mohlala oa Sesebelisoa sa Kabinet
Nomoro ea mohlala	Makhotla a busello (Kvar)	Voltage ea sistimi (V)	Boholo (D * w * h)	Mokhoa oa ho futhumatsa
Gy svg-0,4-200k / 4l-c	200	380 ± 20%	800 * 1000 * 2200mm	O ile a khomarela moea
Gy svg-0,4-250k / 4l-c	250	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0,4-300k / 4l-c	300	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0,4-400k / 4l-c	400	380 ± 20%	800 * 1000 * 2200mm
Gy svg-0,5-270k / 4l-c	270	500 ± 20%	800 * 1000 * 2200mm
Gy svg-0,69-360k / 4l-c	360	690 ± 20%	800 * 1000 * 2200mm
